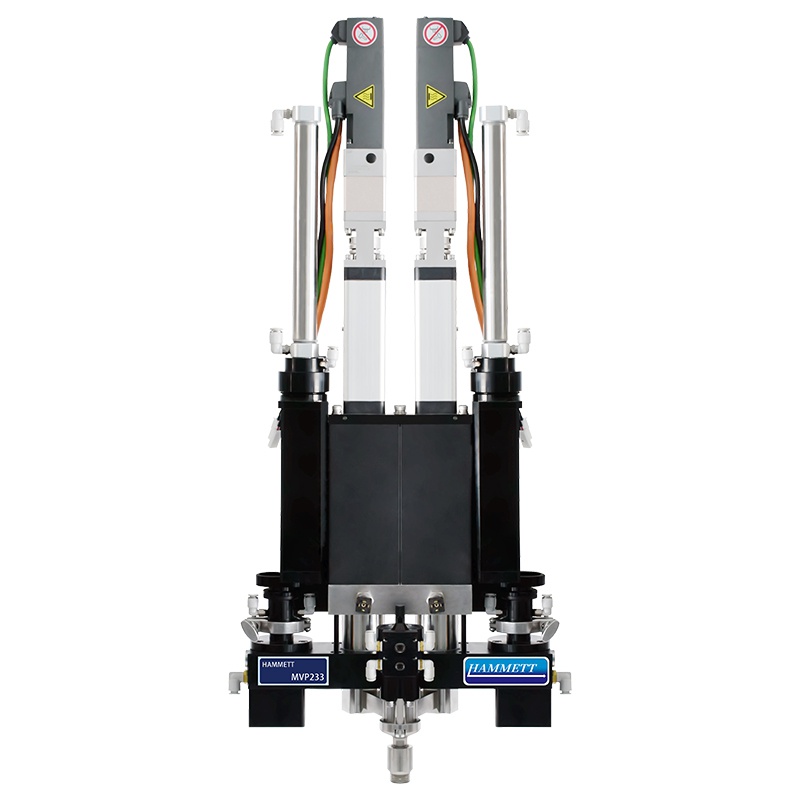

Two Component Metering Mixing Dispensing: Precision Solutions for New Energy Manufacturing

In the rapidly evolving landscape of new energy manufacturing — from electric vehicle batteries to photovoltaic modules — the demand for precision fluid control has never been higher. Among the most critical technologies enabling this precision is the two component metering mixing dispensing system, a solution that accurately proportions, mixes, and dispenses two-part adhesives, sealants, and potting compounds in a single automated process.

Unlike single-component dispensing system, where the adhesive is ready to use directly from the container, two-component (2K) materials — such as epoxy resins, polyurethanes, and silicones — require precise ratio control and homogeneous mixing before application. Any deviation in the mixing ratio can compromise bond strength, cure time, and final product reliability. This is where a high-quality two component metering mixing dispensing machine becomes indispensable.

How Two Component Metering Mixing Dispensing Works

A typical 2K dispensing system consists of three core stages:

1. Metering — Each component (resin and hardener, or A and B sides) is drawn from its respective container and precisely measured using piston pumps, gear pumps, or progressive cavity pumps. The metering accuracy directly determines the quality of the final mix.

2. Mixing — The two components are combined in a static or dynamic mixer. Static mixers use a series of helical elements to blend the materials without moving parts, making them ideal for high-volume, consistent applications. Dynamic mixers use a rotating element for materials with highly dissimilar viscosities or when faster mixing is required.

3. Dispensing — The mixed material is delivered to the application point through a dispensing valve or nozzle, applied as a bead, dot, spray, or encapsulation layer.

For manufacturers in the new energy sector, integrating a precision adhesive flow control system into the dispensing line ensures that each cycle delivers the exact amount of mixed material, eliminating waste and rework.

Key Applications in New Energy Manufacturing

Power Battery Assembly (EV Batteries)

Electric vehicle battery production is one of the most demanding applications for two component dispensing. Battery cells, modules, and packs require thermal interface materials (TIMs), structural adhesives, and potting compounds to be applied with extreme precision. A battery module potting machine must handle:

• High-viscosity potting materials for cell encapsulation
• Fast-curing polyurethanes for structural bonding of prismatic and pouch cells
• Thermally conductive silicones for heat dissipation in battery packs

The fluid metering pump for solar panel and battery applications from spfluiddevices supports viscosities from 20,000 to 1,000,000 cps, making it suitable for both the thin encapsulants and thick structural adhesives used in battery manufacturing.

Photovoltaic Module Production

In solar panel assembly, two-component adhesives are used for junction box potting, frame bonding, and edge sealing. The frame glue coating machine for photovoltaic modules must dispense a consistent bead of adhesive along the aluminum frame perimeter, while the junction box potting machine fills the box cavity with a protective epoxy or silicone compound.

At spfluiddevices, our precision fluid control equipment includes dispensing solutions designed specifically for these photovoltaic applications, ensuring uniform coverage and reliable environmental sealing.

Automotive Electronics

From ECU potting to sensor encapsulation, automotive electronics demand dispensing systems that can handle small, precise shots of two-part materials. A custom dispensing system for electronics assembly can be tailored to shot sizes as small as 0.1 cc while maintaining ±1% ratio accuracy.

Why Choose a Metering Pump Manufacturer Like Spfluiddevices?

For over 15 years, Shanghai Shengpu Fluid Equipment Co., Ltd. (spfluiddevices) has been at the forefront of precision fluid control technology. Our product line includes:

• 55-Gallon Adhesive Dispensing Pump — Designed for large-capacity, continuous production lines in the new energy sector. With a 28:1 air compression ratio and flow rates from 0.3 to 6 L/min, it provides stable adhesive supply for high-volume battery and solar panel manufacturing. Learn more about our 55-gallon pump.
• 5-Gallon Adhesive Dispensing Pump — An ideal solution for medium-volume production lines that require frequent material changes. Explore the 5-gallon dispensing system.
• Industrial Adhesive Dispensing Pump — Our core dispensing platform, built for durability and precision across a wide range of adhesive types. View the full product line.
• Two Component Metering and Mixing Solutions — Custom-engineered systems for 2K adhesive applications, with metering accuracy down to ±0.5%.

Selecting the Right Two Component Dispensing System

When evaluating a two component metering mixing dispensing machine for your production line, consider these factors:

1. Mix Ratio Requirements — Does your adhesive require a 1:1, 2:1, 10:1, or variable ratio? The pump design must match.
2. Viscosity Range — Ensure the metering pumps can handle both low-viscosity (< 1,000 cps) and high-viscosity (> 500,000 cps) materials.
3. Shot Size and Cycle Time — Calculate the required output per cycle and the desired production throughput.
4. Material Compatibility — Wetted parts must resist chemical attack from aggressive resins and hardeners.
5. Automation Integration — The system should interface with PLCs, robots, and MES for smart factory deployment.

For high-viscosity materials like structural sealants used in battery pack assembly, a high-viscosity sealant dispensing pump with a high compression ratio (such as the 28:1 pneumatic pump) is recommended to maintain consistent flow.

Conclusion

As the new energy industry continues to scale — driven by EV adoption, solar expansion, and energy storage growth — the role of precision two component metering mixing dispensing technology becomes increasingly central to manufacturing quality and efficiency. Whether you are potting battery modules, bonding solar frames, or encapsulating sensitive electronics, choosing the right dispensing system from an experienced metering pump manufacturer is critical.

Shanghai Shengpu Fluid Equipment Co., Ltd. offers the engineering expertise, product breadth, and global service network — with sales and after-sales coverage across 17 countries and 44 regions — to support your precision fluid control needs. Contact us today to discuss your application requirements.
